Orchestrator Generator

One of the main features of Mia-Platform is the automatic generation of the orchestrator files, ready to be deployed; these files are saved in the configuration repository. For instance, the Console can generate Kubernetes files and deploy them on your runtime based on the Design configuration you provided.

However, in some scenarios, you may want to generate these files differently: in this case, you have to use an Orchestrator Generator. This enables you to tailor the deployment process to your specific needs and the functionalities offered by your chosen orchestrator, achieving a level of customization not readily available with the default Mia-Platform generation.

When the Orchestrator Generator Extension is enabled, the Console sends a POST request to a configured Provider's API Base URL to generate the files to be deployed. The request body contains some information about the Project and the Configuration, and the Console expects to receive, in response, the files to be saved and deployed.

info

An Orchestrator Generator can only be used when the Enhanced Project Workflow is enabled.

Orchestrator Generator

Setup

To enable the Orchestrator Generator on a Project, follow these steps:

check that the Enhanced Project Workflow is enabled for the Project;
connect a Provider of type Extension API Provider with the Orchestrator Generator capability to its Company, as described in the Extension API Provider page;
navigate to Project Settings and click on the Providers tab;
enable the Orchestrator Generator extension in the Extensions section, selecting the Provider previously connected.

Extension Provider banner

The Providers suitable for the Orchestrator Generator Extension are the ones featuring the Orchestrator Generator capability. Every Provider with such capability can be selected to enable the Extension.

If no Provider with the Orchestrator Generator capability is connected to the Company, the Orchestrator Generator Extension will not appear in Project Settings.

Sequence diagram

This is a simplified schema of the Orchestrator Generator's operation.

Request format

Authentication

The Console will authenticate using the method specified while connecting the Provider, which can be Bearer Token or Basic Auth.

Body

The payload sent to the Extension is shaped as follows:

{
  "project": {
    "name": "<Project Name>",
    "id": "<MongoId>",
    "projectId": "<projectId>",
  },
  "tenant": {
    "name": "<Company Name>",
    "id": "<tenantId>",
  },
  "configurationRef": {
      "name": "<Revision or Version Name>",
      "type": "revision"|"version"
      "changesId" "<identifier of the changes - only for enhanced workflow projects>"
  },
  "environment": {
    "id": "<envId>",
    "name": "<Env name>",
    "isProduction": true|false
  },
  "configuration": {
    "services": {
      "serviceName": {
        "name": "serviceName",
        // ...all services configurations
      }
    },
    "configMaps": {
      "config1": {
        "name": "config1",
        "files": [{
          "name": "file1",
          "content": "file1 content"
        }]
      }
    },
    "serviceAccounts": {
      "serviceAccount1": {
        "name": "serviceAccount1"
      },
      // ...other service account definitions
    },
    "unsecretedVariables": {
      "PUB_VAR_1": "<value of PUB_VAR_1 for the selected environment>",
      // ...other public variables
    }
  }
}

Here is a quick overview of the content of the payload sent:

Field	Description
`project`	Information about the Project for which the deploy has been triggered
`tenant`	Information about the Company
`configurationRef`	Information about the configuration version/revision to be deployed. (NOTE: From Console v14.5.1, the `configurationRef` includes only the `changesId` field, if the project uses the Enhanced Workflow)
`environment`	Information about the Environment for which the deploy has been triggered
`configuration`	A subset of the configuration of the Project, which includes services, configurations, service accounts and unsecreted variables, as set in the Console UI. This is the main field of the payload, as it contains all the information about the Project configuration that the Orchestrator Generator needs to generate the files to be deployed.

The configuration object includes:

Field	Description
`services`	Object holding the configuration of all the Services of the Project. Each key is the name of a service and its value is an object describing the service configuration, as configured and stored in the configuration project. More details in the dedicated paragraph
`configMaps`	Object holding the configuration of all the ConfigMaps of the Project. Each key is the name of a ConfigMap and its value is an object describing the ConfigMap configuration, as configured and stored in the configuration project.
`serviceAccounts`	Object holding the configuration of all the service's Service Accounts of the Project. Each key is the name of a Service Account and its value is an object containing the name of the Service Account.
`unsecretedVariables`	- Object holding all the public variables of the Project, with their value only for the selected Environment (Introduced with Console v14.5.1)

Service data model

Field	Type	Description	optional
`name`	String	Name of the service
`description`	String	Description of the service set in UI
`tags`	String[]	List of tags set in UI
`dockerImage`	String	Service docker image
`advanced`	Boolean	Flag to distinguish the data model for advanced services (if `true` check the advanced services data model)	✔️
`replicas`	Number	Number of service static replicas
`createdAt`	String	ISOString of the service creation date
`environment`	Env Schema	Environment variables
`annotations`	Object	Service annotation, fields (`name`, `value`, `description`)
`labels`	Object	Service labels, fields (`name`, `value`, `description`)
`resources`	Resource Schema	CPU and MEM configuration
`probes`	Probes Schema	K8S probes configuration
`containerPorts`	ContainerPort[]	List of ports exposed by the container (fields: `name`, `from`, `to`)
`configMaps`	ConfigMount[]	List of configurations to be mounted
`terminationGracePeriodSeconds`	Number	Grace period time configuration
`exclusiveServiceExposure`	Boolean	Use this field to understand which containers should be exposed in the k8s Service	✔️
`additionalContainers`	Container[]	Extra containers to be installed in the service	✔️

Env Schema

Field	Type	Description
`name`	String	Env var name
`value`	String	Env var value
`valueType`	`plain`/`secret`	Env var value (if `secret`, use `secretName` and `secretKey`)
`secretName`	String	Name of the secret holding the env value
`secretKey`	String	Name of the secret key (withint the Secret `secretName`) holding the value for the env

Resource Schema

The resources field holds two properties cpuLimits and memoryLimits, each of them having the following schema:

Field	Type	Description	Optional
`max`	String	CPU/MEM limit	✔️
`min`	String	CPU/MEM request	✔️

Probes Schema

The probes field holds three properties: readiness, liveness and startup, each of them having the following schema:

Field	Type	Description	Optional
`path`	String	Path to configure the `httpGet` probe	✔️
`port`	String	Name of the container port exposing the probe	✔️
`initialDelaySeconds`	Number	Value for the `initialDelaySeconds` k8s configuration	✔️
`periodSeconds`	Number	Value for the `periodSeconds` k8s configuration	✔️
`timeoutSeconds`	Number	Value for the `timeoutSeconds` k8s configuration	✔️
`successThreshold`	Number	Value for the `successThreshold` k8s configuration	✔️
`failureThreshold`	Number	Value for the `failureThreshold` k8s configuration	✔️

ConfigMount Schema

Each configMaps item holds information about how to mount a specific ConfigMap found in the top-level configMaps field.

Mount information is the following:

Field	Type	Description	Optional
`name`	String	Name of the ConfigMap to be mounted
`mountPath`	String	Path where the configuration files should be mounted
`subPaths`	String[]	List of specific files that needs to be picked from the ConfigMap and mounted	✔️

Container schema

Each additional container has a similar shape of the main service, holding the following properties subset: name, dockerImage, exclusiveServiceExposure, containerPorts, probes, environment, resources, and configMaps.

Service data model example

JSON request body

{
    "name": "my-service",
    "description": "Some description",
    "tags": ["custom"],
    "dockerImage": "ghcr.io/mia-platform/crud-service",
    "swaggerPath": "/documentation/json",
    "advanced": false,
    "replicas": 1,
    "createdAt": "2022-10-18T13:51:49.959Z",
    "environment": [
        {
            "name": "SOME_VAR",
            "value": "VALUE",
            "valueType": "plain"
        }
    ],
    "annotations": [
        {
            "name": "mia-platform.eu/version",
            "value": "v11.5.0",
            "description": "Version of Mia-Platform used by the project"
        }
    ],
    "labels": [
        {
            "name": "app",
            "value": "crud-service",
            "description": "Name of the microservice, in the service selector",
        }
    ],
    "resources": {
        "cpuLimits": { "max": "300m", "min": "150m" },
        "memoryLimits": { "max": "300Mi", "min": "150Mi" }
    },
    "probes": {
        "liveness": {
            "path": "/-/healthz",
            "port": "http",
            "initialDelaySeconds": 15,
            "periodSeconds": 20,
            "timeoutSeconds": 1,
            "failureThreshold": 3
        },
        "readiness": {
            "path": "/-/ready",
            "port": "http",
            "initialDelaySeconds": 5,
            "periodSeconds": 10,
            "timeoutSeconds": 1,
            "successThreshold": 1,
            "failureThreshold": 3
        }
    },
    "configMaps": [{
        "name": "crud-service-collections",
        "mountPath": "/home/node/app/collections"
    }],
    "containerPorts": [{
        "name": "http",
        "from": 80,
        "to": 3000
    }],
    "terminationGracePeriodSeconds": 30,
    "additionalContainers": [
        {
            "name": "rbac-service",
            "dockerImage": "ghcr.io/rond-authz/rond:main",
            "exclusiveServiceExposure": true,
            "containerPorts": [{"name": "rbac-service","from": 80,"to": 9876}],
            "probes": {
                "liveness": { "path": "/-/rbac-healthz", "port": "rbac-service" },
                "readiness": { "path": "/-/rbac-ready", "port": "rbac-service" }
            },
            "environment": [
                {
                    "name": "HTTP_PORT",
                    "value": "9876",
                    "valueType": "plain"
                }
            ],
            "resources": {
                "cpuLimits": { "min": "100m", "max": "100m" },
                "memoryLimits": { "min": "60Mi", "max": "430Mi" }
            },
            "configMaps": [{
                "name": "rbac-sidecar-svc-opa-policies-config",
                "mountPath": "/configurations/opa",
            }, {
                "name": "rbac-sidecar-svc-oas-permissions-config",
                "mountPath": "/configurations/oas",
                "subPaths": ["crud-service-permissions.json"]
            }]
        }
    ]
}

Response format

The response, coming from the Extension and received by the Console, must be an object holding a key/value pair for each file that needs to be saved to the configuration repository. The key will be threated as the file name while the value as the file content. The file content must be a string.

Optionally, the response can include a __warnings key at the same level as the file entries to surface warning messages to the user directly from the Deploy Area. The Console will extract this reserved key from the response object and handle it separately — it will not be treated as a file. The value of __warnings can be either a single string or an array of strings.

Example

{
    "values.yaml": "the content of the values file...",
    "my-service.deployment.yml": "the content of the deployment file for my-service...",
    "__warnings": "Some warning message to display to the user"
}

Or with multiple warnings:

{
    "values.yaml": "the content of the values file...",
    "my-service.deployment.yml": "the content of the deployment file for my-service...",
    "__warnings": [
        "First warning message",
        "Second warning message"
    ]
}

Error handling

If something goes wrong and an error must be produced by the Orchestrator Generator, you can send a 500 status code and a payload that looks like this

{
   "error": "some technical error to be traced in service logs",
   "message": "some user facing error message that is propagated to the final user"
}

tip

Use the message field to provide useful insights to the final user and help them resolve what have gone wrong with the configuration.

The user will receive your message in the failed deploy feedback modal

failed deploy custom message in modal

Warning handling

If the Orchestrator Generator response includes the __warnings key, the Console will extract it and display the warning messages to the user in the Deploy Area. Warnings do not block the deploy process, but are surfaced to provide useful feedback about the generated configuration.

Warnings are displayed in the following sections of the Deploy Area:

the Deploy modal, after the deploy is triggered;
the Compare changes section;
the Review Configuration section.

tip

Use the __warnings field to inform the user of non-blocking issues or relevant notices about the generated configuration, such as deprecations or sub-optimal settings.

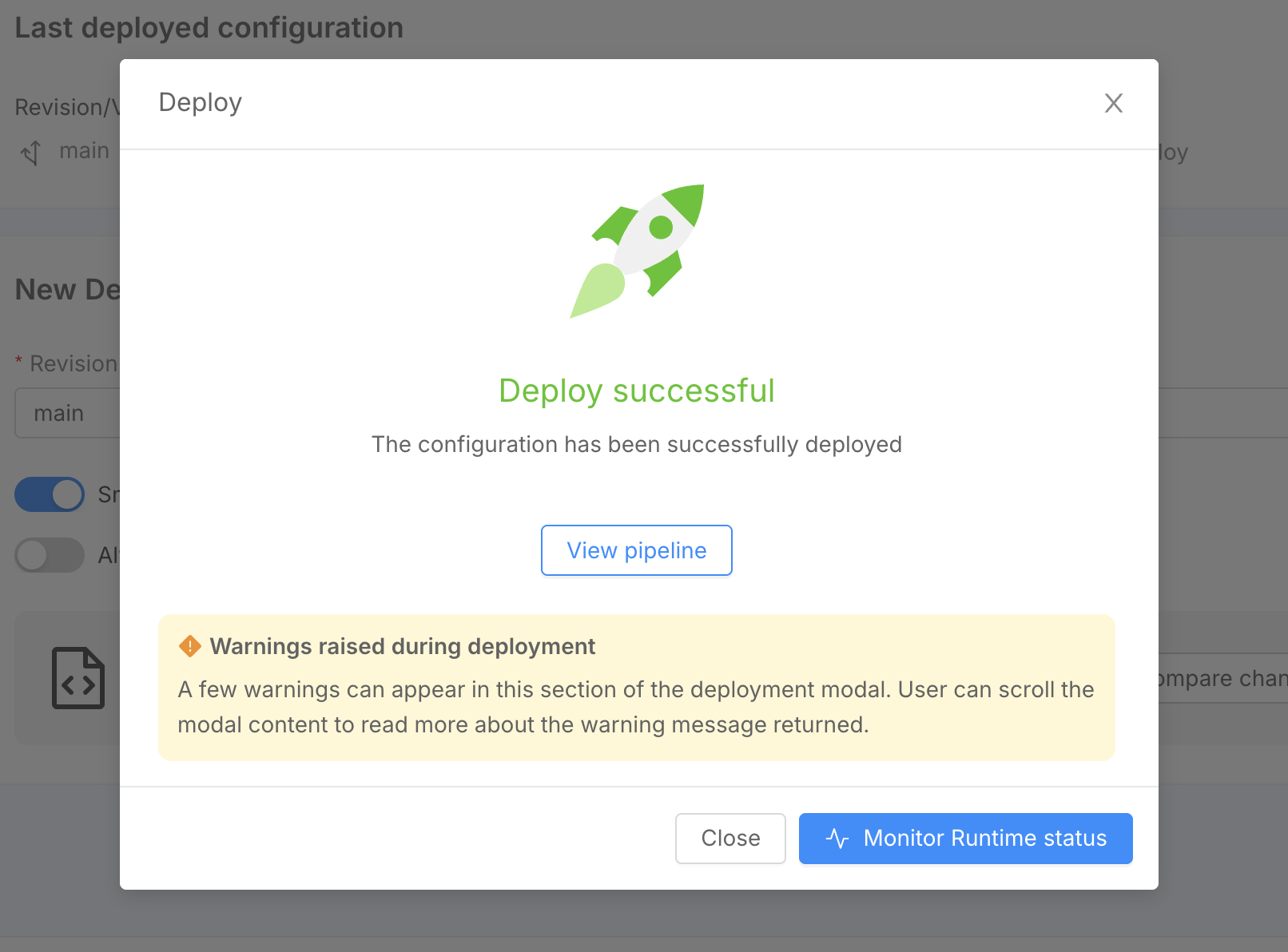

warnings in deploy modal
