Fine-Grained Access Control in Design

info

This feature is currently available exclusively as a Closed Preview and is not yet generally available. For more information and to request its activation for your Company, please contact your Mia-Platform referent.

This feature introduces a mechanism for managing user interactions within the application by restricting specific actions based on user roles and specified rules in the Design section.

If a user attempts to save a configuration after performing some changes that are forbidden by the configured rules, the saving is blocked and an error is returned.

Rules and user roles can be configured at both the Project and Company levels. The following logic applies:

Rules:
It is possible to define both Project and Company rules, supporting both "allow" and "disallow" types:

  • Allow rules (allowedRuleSet): Only changes explicitly permitted by these rules are allowed; all others are denied.
  • Disallow rules (disallowedRuleSet): Only changes explicitly denied by these rules are blocked; all others are allowed.

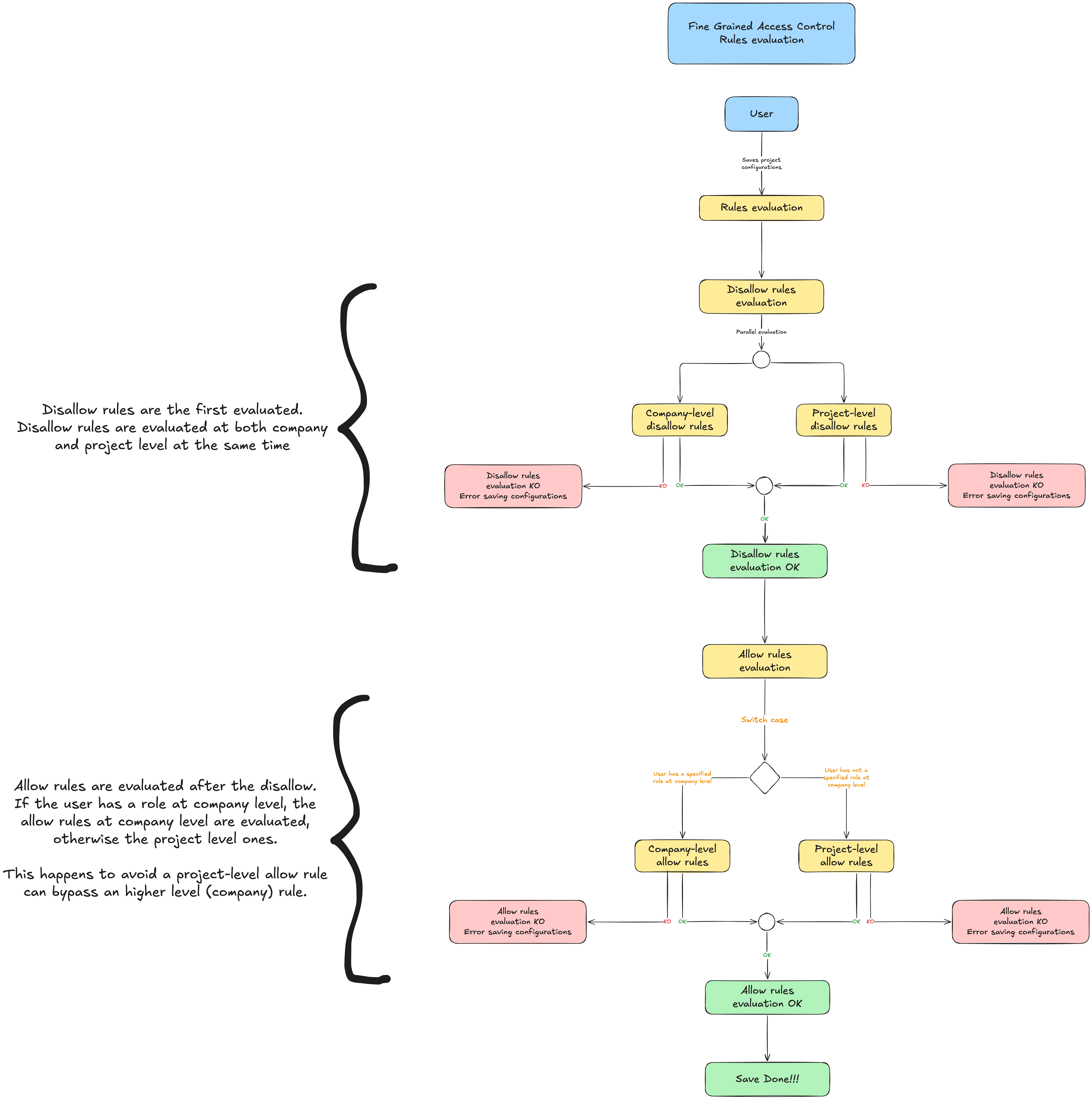

Disallow rules are always evaluated first. If an action matches a disallow rule, it is denied immediately and allow rules are not checked.

User Roles:
If a user has roles assigned at the Project level, only those roles are used to determine applicable rules. If no Project-level roles are assigned, the roles defined at the Company level are used instead.

info

Rules defined at the Company and Project levels are combined, but with an important distinction:

  • For allow rules: if an allow rule is assigned to a specific role at the Company level, any allow rules for the same role at the Project level are ignored. This ensures that permissions granted at the Project level cannot exceed those defined at the Company level for that role.
  • For disallow rules: both Company-level and Project-level disallow rules for the same role are applied together. Project-level disallow rules can only further restrict what is denied at the Company level.

Configuration definition

To enable this feature the Project or Company configurationManagement.saveChangesRules field of the configuration must be set with a list of objects with the following structure:

FieldTypeDescriptionOptional
disallowedRuleSetRuleSet[]list of rules that prohibit a specific actionSee note
allowedRuleSetRuleSet[]list of rules that allow a specific actionSee note
roleIdsString[]List of user roles to which the rules apply
info

At least one of disallowedRuleSet or allowedRuleSet must be specified. You can provide either or both these fields.

The RuleSet object has these fields:

FieldTypeDescriptionOptional
jsonPathStringJSONPath of the resource on which the action must be controlled.
processingOptionsProcessingOptionAdditional options of the rule
ruleIdStringReference to a rule from a predefined set

A RuleSet can be configured in 3 ways, and these apply to both allowedRuleSet and disallowedRuleSet:

Via jsonPath

The jsonPath field is used to extract a target resource by applying a JSONPath expression on the JSON structure of the configuration. The rule will control (allow or disallow) any updates on the extracted resource, depending on whether it is in the allowedRuleSet or disallowedRuleSet.

Via jsonPath and processingOptions

  • The jsonPath is used to extract the target resource.
  • The processingOptions define the actions (create, delete, or both) to allow or prevent on the resource. If the resource captured by the jsonPath is of array type, the field primaryKey must be specified.

The ProcessingOption object has the following structure:

FieldTypeDescriptionOptional
actionsstring[]Actions to be controlled on the resource defined via the jsonPath. Possible values: create, delete. You can specify more than one action in the array.
primaryKeyStringPrimary key of the resource captured by the jsonPath. Mandatory if resource is of array type
caution

The actions field replaces the previous action field and must be an array. You can specify multiple actions to be controlled by the rule.

Via ruleId

The ruleId references a rule from a predefined set of rules, that define a specific behavior.

The available ruleIds are:

ruleIdDescription
endpoints.security.editControls edit of the fields [public, acl, secreted] of endpoints and routes inside endpoints

Examples of allow and disallow rules

The following examples illustrate how to configure both allowedRuleSet and disallowedRuleSet for common scenarios. Each example demonstrates how to explicitly allow or disallow specific actions for a given user role. You can use these examples as templates when defining your own rules in the configuration or when constructing the body of API requests (see Configuring rules via API)

  • Control edit of the dockerImage of all services for the role maintainer

Disallow: prevent editing

{
"configurationManagement": {
"saveChangesRules": [
{
"disallowedRuleSet": [
{
"jsonPath": "$.services.*.dockerImage"
}
],
"roleIds": ["maintainer"]
}
]
}
}

Allow: only allow editing

{
"configurationManagement": {
"saveChangesRules": [
{
"allowedRuleSet": [
{
"jsonPath": "$.services.*.dockerImage"
}
],
"roleIds": ["maintainer"]
}
]
}
}
  • Control creation and deletion of the resource collections for the role maintainer

Disallow: prevent creation and deletion

{
"configurationManagement": {
"saveChangesRules": [
{
"disallowedRuleSet": [
{
"jsonPath": "$.collections",
"processingOptions": {
"actions": ["create", "delete"]
}
}
],
"roleIds": ["maintainer"]
}
]
}
}

Allow: only allow creation and deletion

{
"configurationManagement": {
"saveChangesRules": [
{
"allowedRuleSet": [
{
"jsonPath": "$.collections",
"processingOptions": {
"actions": ["create", "delete"]
}
}
],
"roleIds": ["maintainer"]
}
]
}
}
  • Control creation and deletion of services of a specific type (custom-resource) for the role maintainer

Disallow: prevent creation and deletion

{
"configurationManagement": {
"saveChangesRules": [
{
"disallowedRuleSet": [
{
"jsonPath": "$.services.[?(@.type==\"custom-resource\")]",
"processingOptions": { "actions": ["create", "delete"] }
}
],
"roleIds": ["maintainer"]
}
]
}
}

Allow: only allow creation and deletion

{
"configurationManagement": {
"saveChangesRules": [
{
"allowedRuleSet": [
{
"jsonPath": "$.services.[?(@.type==\"custom-resource\")]",
"processingOptions": { "actions": ["create", "delete"] }
}
],
"roleIds": ["maintainer"]
}
]
}
}
  • Configure the predefined rule with ruleId "endpoints.security.edit" for the role maintainer

Disallow: prevent specified fields edit

{
"configurationManagement": {
"saveChangesRules": [
{
"disallowedRuleSet": [
{
"ruleId": "endpoints.security.edit"
}
],
"roleIds": ["maintainer"]
}
]
}
}

Allow: only specified fields edit

{
"configurationManagement": {
"saveChangesRules": [
{
"allowedRuleSet": [
{
"ruleId": "endpoints.security.edit"
}
],
"roleIds": ["maintainer"]
}
]
}
}
note

When using only allowedRuleSet, all actions are denied except those explicitly allowed.
When using only disallowedRuleSet, all actions are allowed except those explicitly disallowed.
If both are specified, disallow rules take precedence: if a disallow rule violation is found, allow rules are not evaluated for that action.

Fetching and configuring rules with miactl

tip

The following commands are available from miactl v0.16.0, make sure you upgrade.

For the full command specification, please refer to the related miactl documentation.

Command examples:

miactl company rules list --company-id=my-company
miactl company rules list --company-id=my-company --project-id=my-project
miactl company rules update --company-id=my-company -f ~/my-rules.json
miactl company rules update --company-id=my-company --project-id=my-project -f ~/my-rules.json

Example for the file my-rules.json:

[
{
"roleIds": ["developer"],
"disallowedRuleSet": [
{"ruleId": "endpoint.security.edit"}
]
}
]

Configuring rules via API

Updating rules on a Project

The API for updating the rules on a Project is defined as follows

caution

This API is meant for internal use and will be subject to breaking changes.

Request

  • verb: PATCH
  • path: /api/backend/projects/:projectId/rules
Security
SecurityCheck
Authentication required
RBAC permissionsconsole.company.details.update
Body

The body of the request has the structure described in Configuration definition, and shown in Examples of allow and disallow rules

Updating rules on a Company

The API for updating the rules on a Company is defined as follows.

caution

This API is meant for internal use and will be subject to breaking changes.

Request

  • verb: PATCH
  • path: /api/backend/tenants/:tenantId/rules
Security
SecurityCheck
Authentication required
RBAC permissionsconsole.company.details.update
Body

The body of the request is identical for the Project and Company update. The body structure is described in Configuration definition. Examples can be seen in Examples of allow and disallow rules The body of the request is identical for the Project and Company update. The body structure is described in Configuration definition. Examples can be seen in Examples of allow and disallow rules
