Runtime Management

Fast Data Control Plane

Mia-Platform Fast Data includes a Runtime Management solution, the Fast Data Control Plane.

It provides an overall visualization of the Fast Data pipelines released on a specific namespace, and offers functionalities to pause and resume the consumption of data streams along Fast Data pipelines with just a few clicks.

Fast Data Control Plane enables strategic management of the runtime environment in various scenarios:

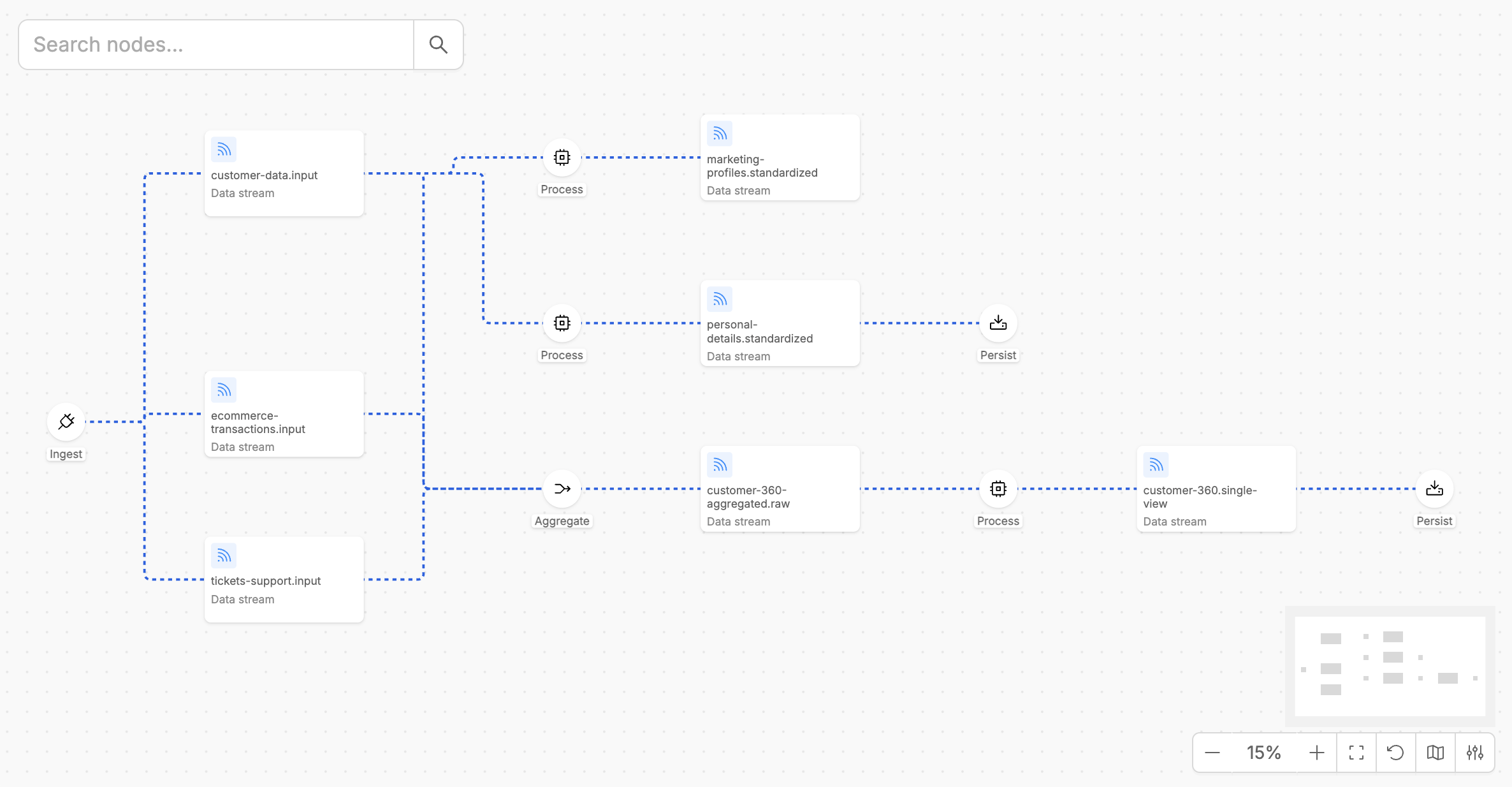

• Visualize Fast Data Pipelines while building them:

  • During the Fast Data pipeline development phase, users can seamlessly configure and deploy new pipeline steps while the Control Plane UI provides a step-by-step visual representation of the architecture.
  • Development is streamlined through incremental rendering on the frontend with continuous deployment, offering immediate visual feedback as the pipeline is built.

• Strategic resource allocation and performance optimization:

  • Dynamically allocate resources by pausing and resuming microservices involved in messages consumption based on workload and resource availability.
  • Efficiently utilize computing resources and prioritize critical processes during peak demand.

• Initial Load and Full Refresh processes management:

  • Govern and control each step of the Initial Load (or Full Refresh) from the Control Plane UI without any frictions.
  • Monitor consumer lag and workload health during these processes to ensure smooth execution.

• Performance Testing and Simulation:

  • Simulate different scenarios for performance testing by pausing and resuming messages consumption along pipeline.
  • Observe system behavior under various conditions to identify bottlenecks and optimize resource allocation.

• Enhanced System Reliability:

  • Gracefully handle unexpected situations or system maintenance by pausing specific data pipeline steps.
  • Resume operations post-maintenance to minimize downtime and enhance overall system reliability.

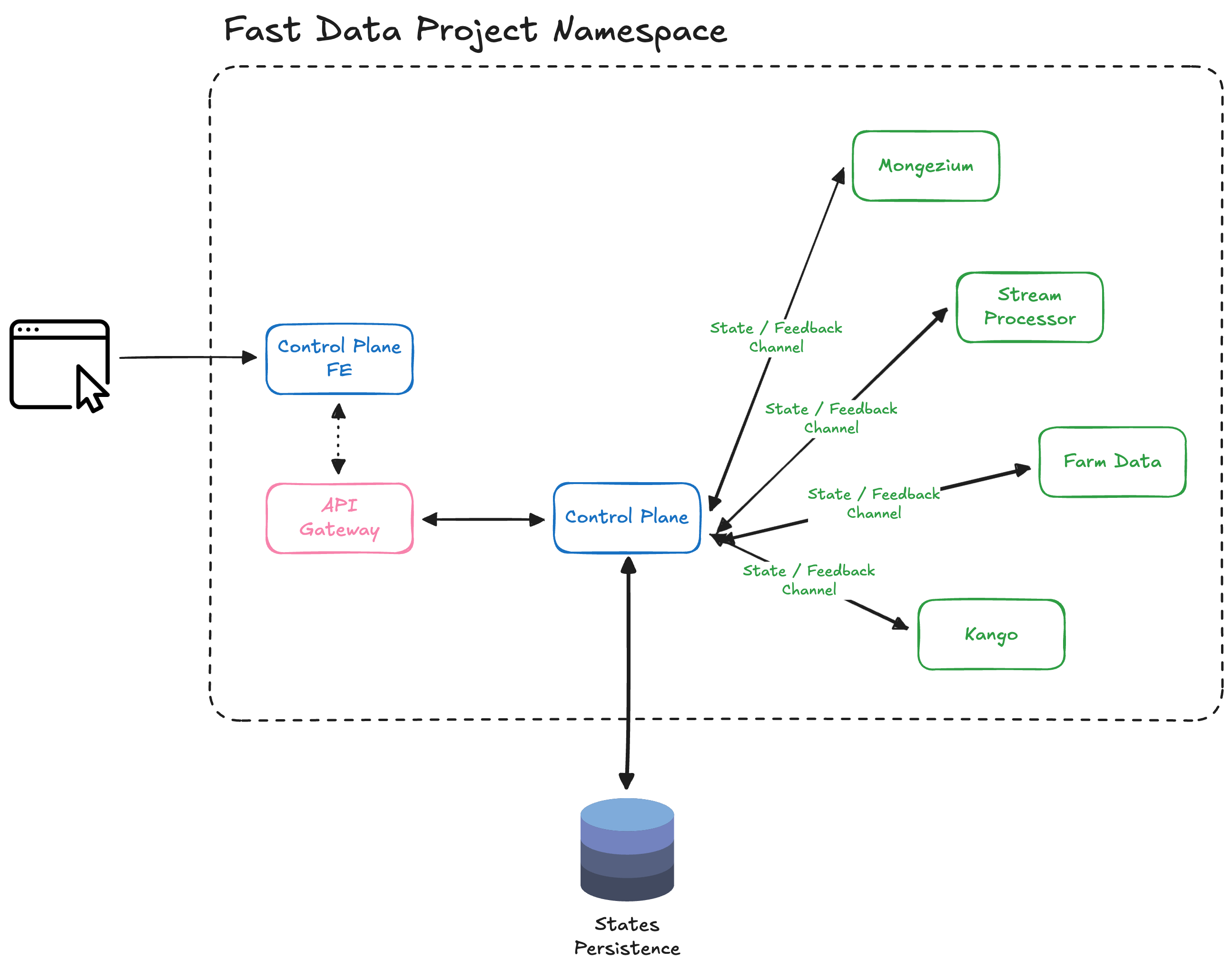

Architecture

The Fast Data Control Plane architecture is designed to provide comprehensive monitoring and control capabilities for Fast Data pipelines deployed within a Kubernetes namespace.

The Control Plane consists of two main services that must be deployed in the same namespace as the Fast Data Engine workloads:

• Control Plane Frontend: Provides the user interface for visualizing and managing Fast Data pipelines. Users interact with this web-based interface to monitor pipeline status, pause/resume operations, and access real-time feedback about the system state.

• Control Plane: Acts as the orchestration engine that communicates with the Fast Data Engine workloads. It manages state transitions, coordinates pause/resume operations across pipeline components, and ensures consistent pipeline governance.

All components communicate through dedicated State/Feedback channels that enable:

• Real-time status monitoring and health checks
• Coordinated pause/resume operations across pipeline steps
• Bidirectional communication for control commands and status updates

The API Gateway provides secure access to the Control Plane services, while States Persistence MongoDB collection ensures that pipeline states and configurations are maintained consistently across system restarts and deployments.

Useful Resources

Here are some useful links to start adopting Runtime Management features into your Fast Data v2 solution:

• visit the Control Plane UI documentation to learn how to interact with the Control Plane frontend interface and manage your Fast Data pipelines;
• visit the Application Configuration documentation to understand how to configure the Control Plane application and to enable the communication with the Fast Data Engine workloads;
• visit the Compatibility Matrix to check whether your infrastructure and Fast Data v2 services are compatible with the Runtime Management features;
• visit the Best Practices documentation for recommendations on initial load strategies, monitoring approaches, and optimization techniques.
