Architecture

With Fast Data v2, you can compose modular data pipelines tailored to your specific business needs. Whether you need to stream data in real-time, build data products, decouple legacy systems, or implement complex multi-stream aggregations, Fast Data v2 Engine provides the flexibility to design the optimal architecture while maintaining clear separation of concerns and operational simplicity.

info

This section illustrates common examples of Fast Data architecture patterns.
We recommend starting with the Fast Data Engine overview page to fully grasp the core functional concepts before exploring the architecture examples below.

Single View Data Product Architecture​

This is the most common architecture pattern for building real-time data products (Single Views). The pipeline transforms data coming from various tables on the source system into business-ready insights that can power customer-facing applications and analytics.

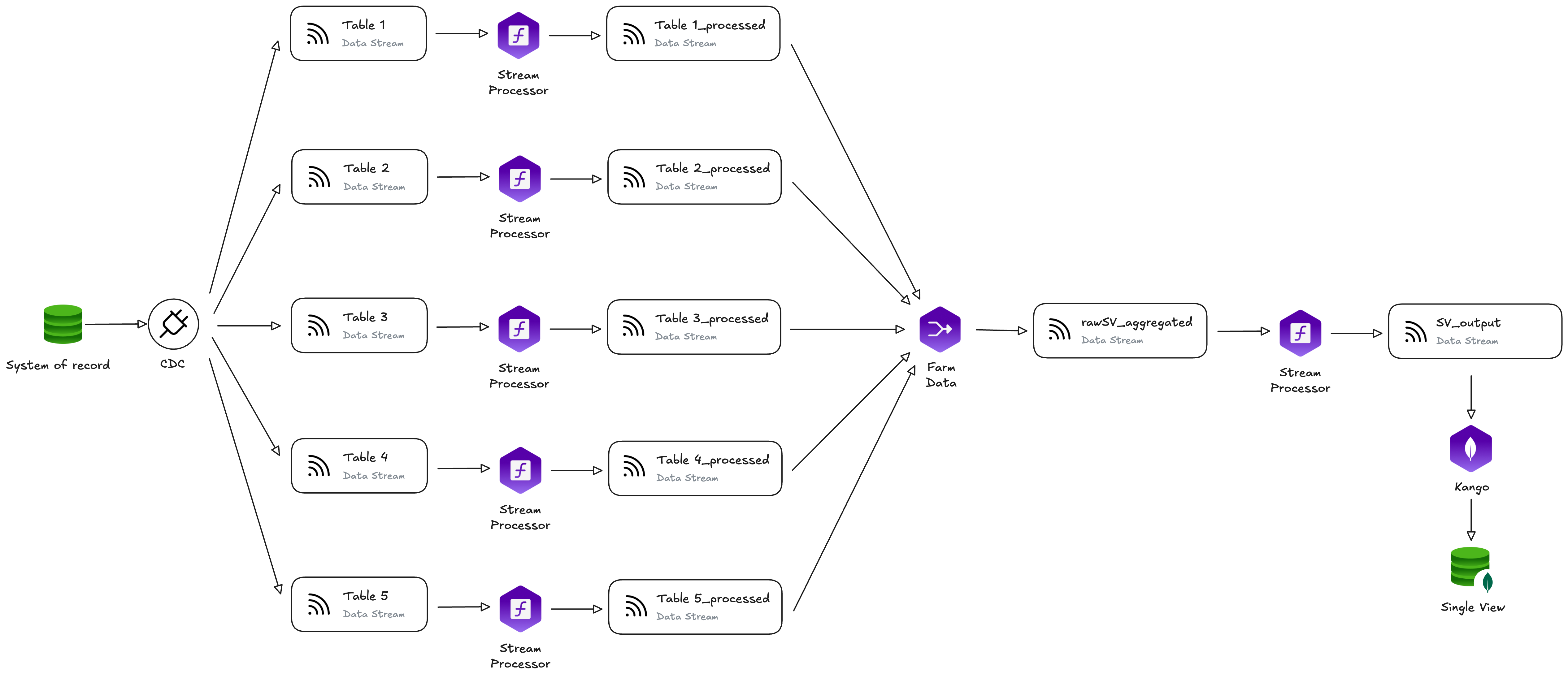

Single View Architecture

Architecture Flow:

  1. Data Capture: CDC (Change Data Capture) extracts changes from the System of Record, streaming data from multiple tables into individual Kafka topics
  2. Stream Transformation: Each data stream flows through a dedicated Stream Processor service that - for instance - can:
    • Validate and normalize data formats
    • Apply business rules and data quality checks
    • Filter irrelevant or invalid records
    • Map source schemas to standardized formats (Within the context of Fast Data, workloads exchange change events that must follow an ad-hoc format.
      For more information, visit the Fast Data Message Format section)
  3. Multi-Stream Aggregation: Farm Data service receives all processed streams and:
    • Joins data from multiple data streams based on a user-defined Directed Acyclic Graphs (DAGs)
    • Maintains persistent state for incremental aggregation
    • Produces the unified data representation (raw Single View)
  4. Post-Processing: A final Stream Processor applies:
    • Business logic transformations specific to the final data product
    • Additional enrichment or derived field calculations
    • Final formatting for downstream consumption of the Single View
  5. Persistence: Kango persists each produced Single View to MongoDB, making it available for:
    • Real-time API queries from business applications
    • Analytics and reporting tools
    • Customer-facing user interfaces

Digital Twin and Legacy Modernization Architecture​

When your goal is system decoupling and legacy modernization, this architecture creates normalized, high-quality digital representations of your operational data without complex aggregation logic.

Digital Twin Architecture

Architecture Flow:

  1. Data Capture: CDC extracts changes from the legacy System of Record
  2. Independent Processing: Each source table follows its own transformation pipeline:
    • Stream Processor normalizes and standardizes the data format
    • Applies data quality rules specific to each entity type
    • Maps legacy schemas to modern, standardized data models
  3. Parallel Persistence: Kango persists each processed stream to its own Projected Table, creating clean digital twins of the source data

Use Cases:

  • API Layer Creation: Expose clean, standardized data APIs while keeping legacy systems unchanged
  • Microservices Migration: Provide each microservice with its own denormalized data copy, reducing dependencies on the monolithic database
  • Data Quality Improvement: Transform messy legacy data into clean, well-structured, AI-ready formats without modifying the source system
  • System Isolation: Insulate downstream applications from legacy system complexity and technical debt

Advanced Multi-Source Pipeline Architecture​

For complex enterprise scenarios requiring sophisticated data flows, Fast Data Engine v2 enables advanced architectures that combine multiple patterns while maintaining modularity and operational clarity.

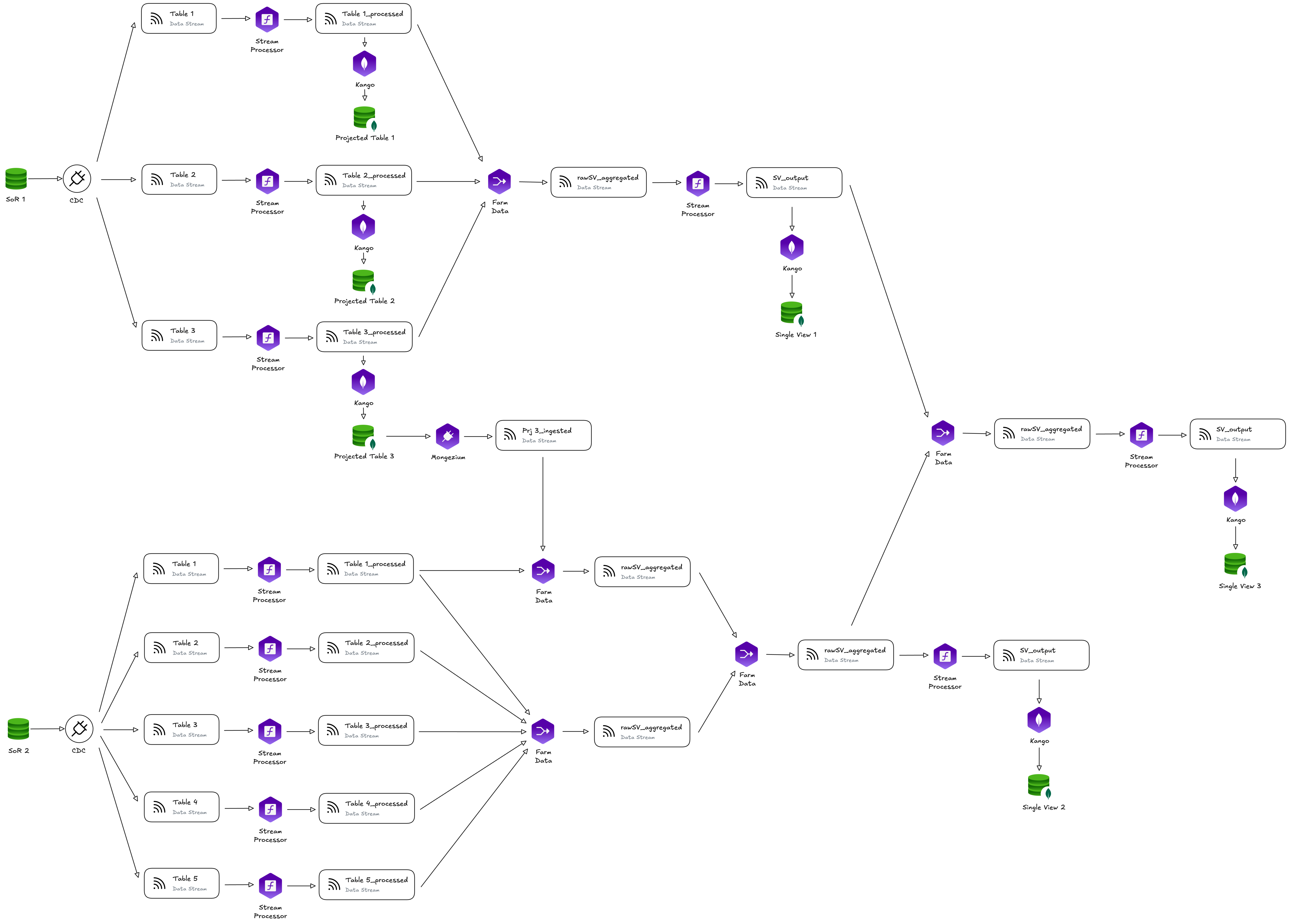

Advanced Architecture

Architecture Highlights:

This architecture demonstrates Fast Data Engine v2's maximum flexibility by combining multiple patterns:

  • Multiple Source Systems: Various independent Systems of Record (in the example, SoR 1 and SoR 2) feed the pipeline through their own ingestion layer
  • Parallel Processing Paths: Different tables follow different processing strategies:
    • Some streams are directly persisted as Digital Twins (Projected Tables)
    • Others are aggregated by Farm Data instances to create Single Views
    • Some undergo multiple transformation stages before reaching their destination
  • Multiple Farm Data Instances: Different aggregation engines process distinct subsets of data, each maintaining its own state and producing specialized data products
  • Mixed Output Patterns: The pipeline produces multiple types of outputs simultaneously:
    • Single View 1 and Single View 2 for different business use cases
    • various data assets for a specific decoupled data store
    • Intermediate projected tables for debugging or alternative consumption
  • Strategic Stream Processor Placement: Transformation workloads are positioned exactly where needed:
    • Pre-aggregation for example for data normalization and quality
    • Post-aggregation for example for business logic and final formatting
    • Mid-pipeline for example for routing and enrichment decisions

These architecture patterns demonstrate that Fast Data Engine v2 workloads are not prescriptive building blocks - they are flexible, composable components that you can arrange to match your exact requirements, whether simple or sophisticated.
