Configuration and Installation

This guide provides step-by-step instructions for installing the Data Catalog Excel Add-in on your system.

Compatibility​

The Data Catalog Excel Add-in is compatible with Microsoft Excel Desktop and Microsoft Excel 365 (Excel for the web).

Prerequisites​

Before installing the add-in, ensure you have:

  • A Data Catalog instance released on a Mia-Platform Console Project environment
  • Valid Data Catalog authentication credentials (username and password)
  • Microsoft Excel Desktop installed by your organization or access to Excel 365 online
  • Network access to your organization's Data Catalog instance
  • The Add-in must be deployed in the same namespace as your Data Catalog instance

Plugin Configuration and Deployment​

To configure the Data Catalog Excel Add-in software item, follow these steps:

  • Enter Mia-Platform Console Project revision where Data Catalog application has been configured
  • Search on the available software items and choose the Data Catalog Excel Add-in
  • Click on Create button to instantiate in your Project revision the Data Catalog Excel Add-In

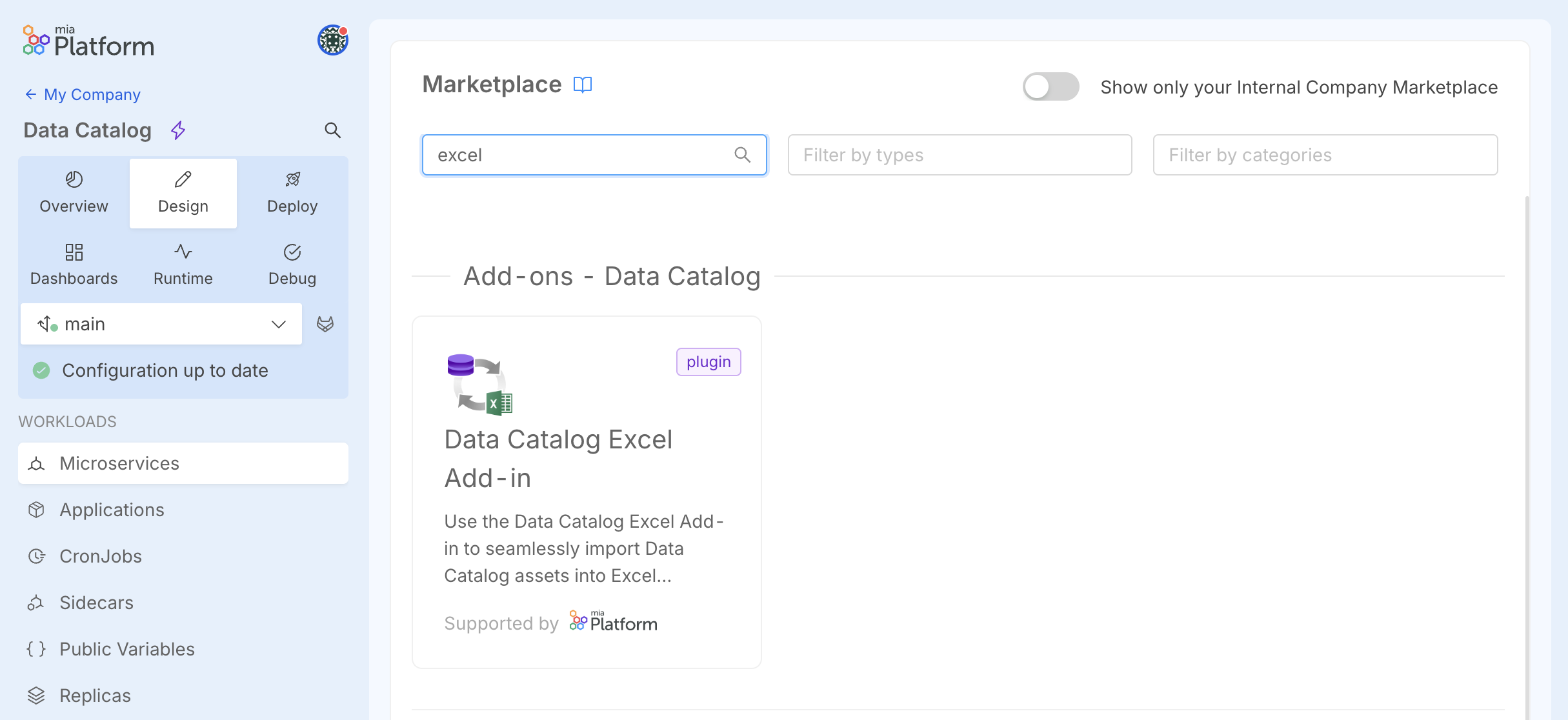

Data Catalog Excel plugin

Once created, make sure to properly configure the necessary environment variables and configMaps.

info

Recommended minimum versions of Data Catalog application components:

  • Data Catalog Frontend: v0.4.0
  • Open Lineage: v0.4.0

For more information, refer to the Data Catalog Compatibility Matrix.

Environment variables​

Set the DATA_FABRIC_BASE_URL env var with the base URL of your Data Catalog instance where the Excel Add-in is deployed (e.g. https://my-data-catalog.example.eu).

ConfigMaps​

Configure the excel-add-in-config ConfigMap with the following configuration.json file:

{
  "api": {
    "data-catalog": "/api"
  },
  "auth": {
    "appId": "<DATA_CATALOG_APP_ID>",
    "providerId": "<PROVIDER_ID>"
  },
  "name": "Mia-Platform Data Catalog Excel Add-in",
  "version": "1.0.0.0"
}

Replace the following placeholders with your actual values:

  • <DATA_CATALOG_APP_ID>: The Application ID configured for your Data Catalog instance in the authentication provider
  • <PROVIDER_ID>: The Provider ID used for authentication in your Data Catalog setup
info

These authentication parameters must match the configuration of your Data Catalog instance to ensure proper integration and user authentication.

Authentication service update​

In the configMap of the Authentication service used by your Data Catalog instance, add the following JSON configuration. Make sure to replace <DATA_CATALOG_APP_ID> and <PROVIDER_ID> placeholders with the same values used in the excel-add-in-config ConfigMap.

"<DATA_CATALOG_APP_ID>": {
  "providers": {
    "<PROVIDER_ID>": {
      "order": 10,
      "type": "<PROVIDER_TYPE>",
      "label": "Login with <PROVIDER_TYPE> ",
      "clientId": "{{CLIENT_ID}}",
      "clientSecret": "{{CLIENT_SECRET}}",
      "baseUrl": "{{BASE_URL}}",
      "authUrl": "{{BASE_URL}}/oauth2/v1/authorize",
      "tokenUrl": "{{BASE_URL}}/oauth2/v1/token",
      "userInfoUrl": "{{BASE_URL}}/oauth2/v1/userinfo",
      "userSettingsURL": "{{BASE_URL}}/enduser/settings",
      "logoutUrl": "{{BASE_URL}}/oauth2/v1/logout",
      "scope": [
        "openid",
        "profile",
        "email",
        "offline_access",
        "groups"
      ]
    }
  },
  "redirectUrl": "{{DATA_FABRIC_BASE_URL}}/excel/web-login/oauth/callback",
  "defaultRedirectUrlOnSuccessfulLogin": "/excel/profile",
  "authorizeStateRequired": true,
  "realm": "<REALM_NAME>",
  "isWebsiteApp": true,
  "issuer": "<ISSUER_ID>",
  "defaultGroups": [],
  "customTokenClaims": {
    "metadataFieldsToInclude": []
  }
}

Endpoints​

Along with the configuration of the plugin, add the following endpoint to your Mia-Platform Console Project revision:

  • /excel pointing to the Excel Add-in service, exposed on the Container Port http 80:8080; once created, go to Advanced tab of the endpoint detail page, and inside the Iframe embedding options, select Any origin.

Deploy the Plugin​

Once the configuration is complete, proceed with the deploy of the plugin in the same runtime environment in which the Data Catalog application is deployed.

Installation Methods​

There are two methods to install the Data Catalog Excel Add-in, depending on your organization's setup and the Excel platform you're using.

This method allows administrators to deploy the add-in organization-wide through the Microsoft 365 Admin Center, making it available to all authorized users.

Step 1: Administrator Setup​

The user performing this installation step must have one of the following roles in Microsoft 365:

  • Exchange Administrator
  • Application Administrator

Installation procedure:

  1. Prepare the add-in package:

    • Access your Data Catalog instance and download the following files:
      • manifest.json (available at https://<your-data-catalog-url>/excel/manifest.json)
      • assets/icons/Plugin-32.png (available at https://<your-data-catalog-url>/excel/assets/icons/Plugin-32.png)
      • assets/icons/Plugin-80.png (available at https://<your-data-catalog-url>/excel/assets/icons/Plugin-80.png)
    • Organize the files maintaining this folder structure:
      data-catalog-addon/
      ├── manifest.json
      └── assets/
          └── icons/
              ├── Plugin-32.png
              └── Plugin-80.png
    • Create a ZIP archive of the entire folder

  2. Upload to Microsoft 365 Admin Center:

    • Navigate to https://admin.microsoft.com
    • Go to Settings > Integrated Apps
    • Click Upload custom apps
    • Upload the ZIP file you created
    • Click Next through the configuration steps
    • Click Finish to complete the upload

  3. Deploy for Organization's users:

    • Still in the Microsoft 365 Admin Center, go to Settings > Integrated Apps > Available Apps
    • In the search bar, type "Data Catalog" to find your newly uploaded add-in
    • Click on the add-in name
    • Click Deploy
    • Select the users or groups who should have access to the add-in
    • Confirm the deployment
info

After deployment, it may take a few minutes for the add-in to become available to end users.

Step 2: End User Activation​

Each user who has been granted access and enough permissions by the administrator can follow these steps to activate the add-in in their Excel application.

Installation procedure:

  1. Open Microsoft Excel (Desktop or Excel 365)
  2. Navigate to the Home tab in the ribbon
  3. Click on Add-ins
  4. In the add-ins menu, select Advanced
  5. Choose My Organization
  6. Locate the Data Catalog add-in in the list
  7. Click on it to install
  8. The add-in will be installed and a new Data Catalog tab will appear in the Excel ribbon

Method B: Individual Installation (Office.com Only)​

This method allows individual users who have access to office.com and enough permissions to install the add-in directly without administrator intervention.

caution

This method works only for Microsoft Excel 365 (Excel for the web).

Installation procedure:

  1. Download the manifest file:

    • Access your Data Catalog instance at https://<your-data-catalog-url>/excel/manifest.xml
    • Download and save the file with the .xml extension

  2. Install in Excel Online:

    • Open office.com in your browser
    • Launch Excel 365 (Excel for the web)
    • Navigate to the Home tab
    • Click on Add-ins
    • Select Advanced
    • Click Upload My Add-in
    • Click Browse and select the .xml manifest file you downloaded
    • Complete the upload procedure
    • The add-in will be installed and the Data Catalog tab will appear in the Excel ribbon

First Access and Authentication​

After successfully installing the add-in using either method, you can start using it:

  1. Open the Data Catalog tab: Look for the Data Catalog tab in your Excel ribbon
  2. Access the Profile section: In the Setup group, click the Profile button
  3. Authenticate: A task pane will open on the right side of Excel
  4. Enter your credentials: Use your Data Catalog username and password to log in
  5. Start working: Once authenticated, you can start using the add-in features to pull and manage metadata!

Visit the usage documentation to learn how to pull assets, enrich metadata, and push updates back to the Data Catalog.

Troubleshooting​

Add-in Not Visible After Deployment​

If the add-in doesn't appear after administrator deployment:

  • Wait 5-10 minutes: Deployment can take time to propagate across Microsoft 365
  • Sign out and sign back in: Log out of Microsoft 365 and log back in to refresh your session
  • Restart Excel: Close Excel completely and reopen it
  • Clear Office cache: Clear the Office cache and restart the application

Cannot Find "Data Catalog" in My Organization​

If you cannot locate the Data Catalog add-in in the My Organization section:

  • Verify deployment: Confirm with your administrator that you were included in the deployment
  • Check permissions: Ensure your user account has the necessary permissions to install add-ins
  • License verification: Verify that your Microsoft 365 account has the required licenses

Upload Fails in Method B​

If the manifest upload fails when using Method B:

  • File format: Ensure you downloaded the .xml file correctly (check it's not saved as .txt)
  • Network access: Verify you have network access to your Data Catalog instance
  • URL accessibility: Check that the manifest URL is accessible from your browser
  • File integrity: Try downloading the manifest file again

Authentication Issues​

If you cannot authenticate after installation:

  • Credentials: Verify your Data Catalog username and password are correct
  • Network connectivity: Ensure you have network access to the Data Catalog instance URL
  • Browser settings: For Excel 365, check that your browser allows pop-ups from the Data Catalog domain
  • Firewall: Verify that your organization's firewall is not blocking access to the Data Catalog

Add-in Shows Errors or Doesn't Load​

If the add-in displays errors or fails to load properly:

  • Clear browser cache: For Excel 365, clear your browser cache and cookies
  • Check SSL certificate: Ensure the Data Catalog server has a valid SSL certificate
  • Verify URLs: Confirm all URLs in the manifest are correct and accessible
  • Try different browser: For Excel 365, try using a different browser
  • Check Excel version: Verify you're using a supported version of Excel
tip

If problems persist after trying these solutions, contact your IT administrator or Mia-Platform community support.
